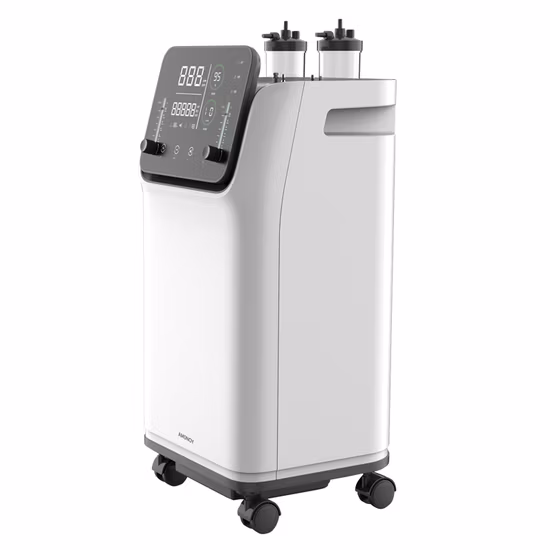

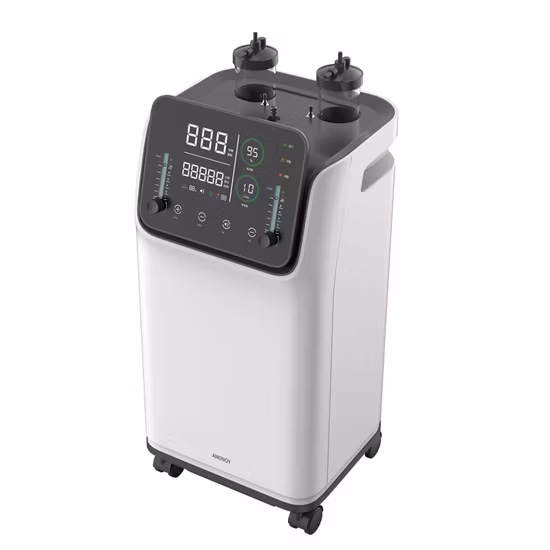

Medical 5 Liter Oxygen Concentrator with 93% High Purity, Low Purity Alarm, Nebulizer

Basic Info

Model NO.	ANGEL-5S
Transport Package	Cartons or Pallet
Specification	50x37x71cm
Trademark	AngelBiss
Origin	China
HS Code	90192000
Production Capacity	60000PCS/Year

Product Description

Medical 5 Liter Oxygen Concentrator with 93% High Purity, Low Purity Alarm, Nebulizer
AngelBiss, the first one to focus on fluctuation of an oxygen concentrator,the first one can control the fluctuation rate within 0.1%.

Features

1. A Touch operate multi-functional units.
2. 5Liter with 93%±3% oxygen purity output for COPD users
3. Oxygen Purity Display by Numbers ( Accuracy 00.0%)
4. Timer
5. Large 6' LED Light Display all functional data
6. Accumulated total running hours

Special features only provided by AngelBiss Technology

1. The world's NO. 1 Oxygen Output Purity Fluctuation rate controlled within 0.1%.
2. Automatic heavy humidity remove molecular sieve
3. Independent Oxygen outlet & nebulizer outlet system
4. Child Lock settings
5. 3 years warranty or 18000hours lifetime
6. Durable use for environment areas at high temperature (45ºC), high altitude (4500m).

Accessories

1 Humidified bottle
1 Outlet tube
2 Cannula
1 Nebulizer kit

Body structure graphic

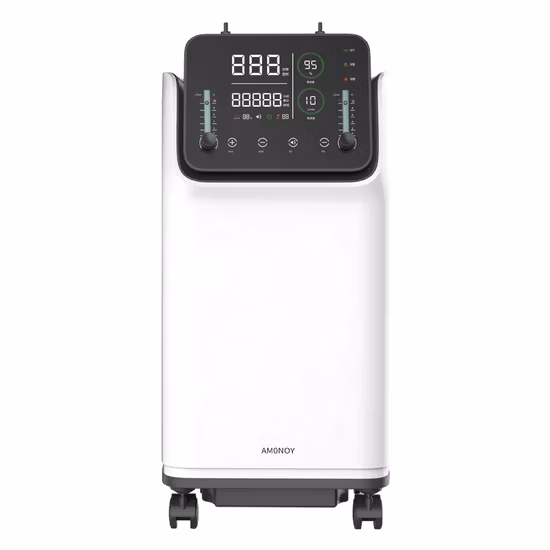

Operation panel



Technical specifications

System Map	Funtions	Parameters
Oxygen Generating System	Oxygen Flow	0.5~5L/min
	Oxygen Concentration	93% ± 3%
	Oxygen Output Pressure	0.04-0.07MPa
	Oxygen Number Display	YES
Nebulizer System	Nebulize Mode	YES
	Individual Nebulizer Outlet	YES
	Display Method	On LED screen
	Operating Way	By touch panel buttom
	Accessories	Nebulize nozzle and mask
	Nebulizing Particle Size	3.6μm ± 25%
Screen Display System	Display Material	All by LED lights
	What Can Be Displayed?	"Oxygen" light on
		"Nebulize" light on
		"Oxygen Percentage" light on
		"Each Runing Time" light on
		"Accumulated Time" light on
		"Timer Setting Number"
Safety System	Low Oxygen Alarm	YES
	Oxygen Pressure Protection Alarm	YES
	Pressure Faulty Alarm	YES
	Power off Alarm	YES
	Compressor Faulty Alarm	YES
	Overheated Protection	YES
Electrical System	Power Consumption	300 W
	Auto Power off by timer	YES
	Screen Sleep Mode	YES
	Noise Level	<47dB(A)

Company introduction

AngelBiss Medical Technology is a Chinese manufacturer specializing in 5L Oxygen Concentrator and Portable Suction Machine.

AngelBiss is a technology holder supplier from United States, establish her first production facility in Jiangsu, mainly engage in development, exportation and manufacturing quality products on the field of Oxygen Therapy, Surgery Therapy, Asthma Therapy and Diagnostic Therapy. AngelBiss has provided many quality-pricing medical products to world customers.

AngelBiss is the brand can be sourced from end of last century.The critical technologies are brought in USA and Germany. And now having complete services networks on Malaysia,China, Nepal, Bangladesh, Ukraine, Italy, UK,and Iran. AngelBiss having the most professional talent engineering managements, experienced workers and sales managements team, which make her customers to believe AngelBiss can always be holding the progressive critical manufacturing equipments and better off quality control system that will continuously creat more values for her customers.



Production, product inspection and packaging

AngelBiss Medical Technology implements strict quality control and product testing, and adheres to the principle of quality first.

Quality policy: Continuously improve professionalism, Continuously optimize the workflow, Ensure the safety and effectiveness of the product.

Quality goal: The pass rate of raw materials inspection exceeded 95%, Product assembly qualification rate exceeds 98%, The factory pass rate is 100%.





High altitude test

ANGELBISS, the only one can control the oxygen output purity fluctuation rate within 0.1%, the only one to test 5L oxygen flow attain 93% on 15000 ft Tibet mountain.

In Sep 2019, our team conducted a three-day machine running test in Tibet mountain. At this altitude of 15,000 ft mountain, our 5L oxygen concentrator still maintains 93% oxygen purity. Tests over and over again proved that the AngelBiss oxygen concentrator was able to operate normally on high altitude countries and areas.



After sales service

We offer a three-year warranty to our global distributors and customers.

Choose AngelBiss, Now level up faithfullness of our health
